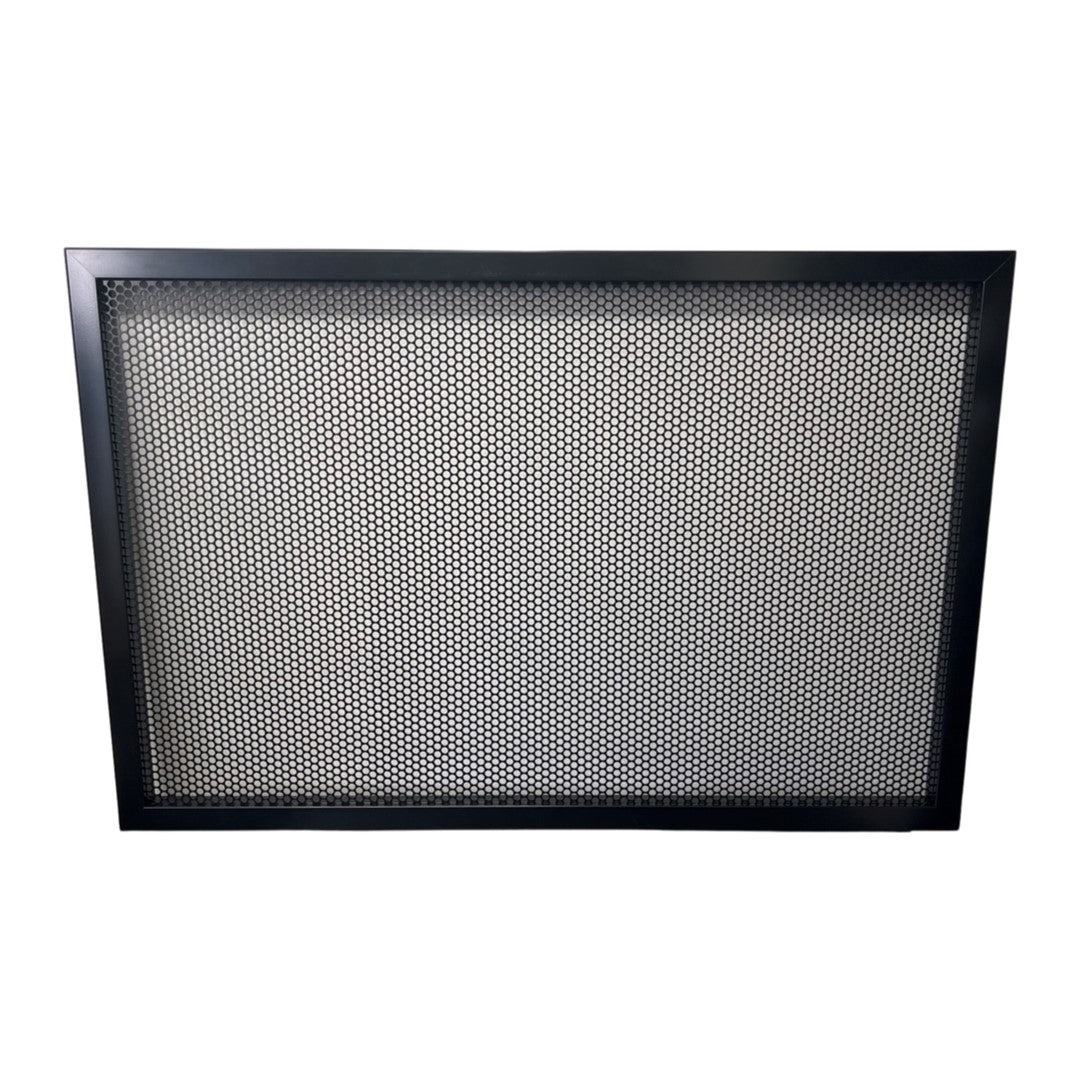

Perforated Pool Fence Panel & Gate Framing KIT

Pool Fencing Supplies / PFS Marine grade aluminium perforated pool fence panel & framing kit satin black makes up to 1 x 1180mm (H) x 2070mm (W) Panel + 1 x1180mm (H) x 970mm (W) Gate Panel.

Patterned product. AS1926.1 pool safe and compliant with full structural engineering.

Includes:

38x38x6500 Perforated Pool Fence Frame & cover clip x 2

1 x 1140mm (H) x 2960mm (W) x 2.5mm Perforated Panel Infill with 9.5mm perforation (finished panel 1180mm x 2070mm x 1 & 1180mm x 970 Gate x 1).

(install panel with minimum 25mm - 100mm max gap under the panel to achieve the minimum installed height of 1200mm.).

8 x 90 degree corner bracket

100 x 10g x 16 x 16 SKU 45889B Wafer head #2 SQ drive self driller G304SS screw.

1 x Safetech top pull pool latch

1 x Safetech adjustable tension self closing pool hinges (Pair)

3 assembly and installation methods, one system!

1. Bracket mounted – Instructions available – Cut installation time by more than 50%
2. Channel mounted – Instructions available – Cut installation time by 50%
3. Custom raked panels, side gates & pool gates without any welding using our corner bracket system. – Super strong connections without welding.

Framing cutting and assembly:

1. Tools required - Drill Driver with #2 Sq drive bit, Angle Grinder with 1mm cut off blade for cutting perf sheets to desired size if required, Aluminium mitre saw to cut framing at 45 degree angle each end & sanding disk or flap disk attached to grinder to sand the corner brackets if needed for perfect fit.
2. 2 x 6500 framing kit makes 1 x 2070mm completed panel plus 1 x 970mm completed gate.

3. Add 40mm to the frame cut length of the perf panel size. eg 1140x2030mm perf panel would become 1180x2070mm. 2 x 1180mm 45 deg mitre cut, 2 x 2070mm 45 degree mitre cut. Gate 2 x 1180mm 45 deg mitre cut, 2 x 970mm 45 deg mitre cut.

4. the corner brackets are inserted into the frame and screwed through the perforated sheet into the frame and into the bracket creating a super strong connection.
5. screw 4 screws into each corner and then every 200-300mm spacing for the remaining sheet, then snap on cover clip to hide all fixings.

Why choose PFS Perforated Pool Fence?

1. Premium marine grade aluminium
2. Easy to clean & low maintenance
3. Strong and durable market leading 38x38 extruded frame, not 38x25 like some of our competitors, buyer beware.
4. Our unique corner bracket design allows the frame to be fastened together offering superior strength, safety and peace of mind. We offer 90 degree for standard framing and 135 degree for raked panel framing. You can make standard rectangles, raked panels and stepped panels with ease using this exclusive product.
5. Premium stainless steel self drilling wafers supplied, not cheap galvanized fasteners like our competitors.
6. We are based in Meadowbrook QLD with a 1200m2 warehouse. feel free to come in and speak with our sales team or call or email us. We are here to help.

Not included:

Posts & channel mounts to be purchased separately.
